Adding DM-Baryon Relative Velocities¶
This notebook shows how to include the effect of the DM-baryon relative velocities, and the EOS2021 parameters.
Based on Muñoz+21 (https://arxiv.org/abs/2110.13919). See https://drive.google.com/drive/folders/1-50AO-i3arCnfHc22YWXJacs4u-xsPL6?usp=sharing for the large (1.5Gpc) AllGalaxies simulation with the same parameters. Note that this notebook has been updated to use 21cmFASTv4, while EOS2021 was run with 21cmFASTv3. The results will be slightly different due to various small fixes and improvements in v4, but the basic physics is still the same.
It is recommended to do the other tutorials first.
[1]:
import matplotlib
import numpy as np
%matplotlib inline
import matplotlib.pyplot as plt
from matplotlib import colormaps
import py21cmfast as p21c
from py21cmfast import plotting
from tempfile import mkdtemp
random_seed = 1605
EoR_colour = matplotlib.colors.LinearSegmentedColormap.from_list(
"mycmap",
[
(0, "white"),
(0.33, "yellow"),
(0.5, "orange"),
(0.68, "red"),
(0.83333, "black"),
(0.9, "blue"),
(1, "cyan"),
],
)
colormaps.register(cmap=EoR_colour)
Fiducial and lightcones¶
Let’s fix the initial condition for this tutorial.
[2]:
output_dir = mkdtemp()
inputs = p21c.InputParameters.from_template(
'Munoz21', random_seed=911,
node_redshifts=p21c.get_logspaced_redshifts(
min_redshift=5, max_redshift=35.0, z_step_factor=1.06
)
).evolve_input_structs(
HII_DIM=64,
DIM=172,
BOX_LEN=200,
)
initial_conditions = p21c.compute_initial_conditions(
inputs=inputs,
cache=p21c.OutputCache(output_dir),
)
/home/jed/miniconda3/envs/21cmfast/lib/python3.13/site-packages/attr/_make.py:2893: UserWarning: Resolution is likely too low for accurate evolved density fields
It Is recommendedthat you either increase the resolution (DIM/BOX_LEN) orset the EVOLVE_DENSITY_LINEARLY flag to 1
v(inst, attr, value)
[3]:
len(inputs.node_redshifts)
[3]:
32
[4]:

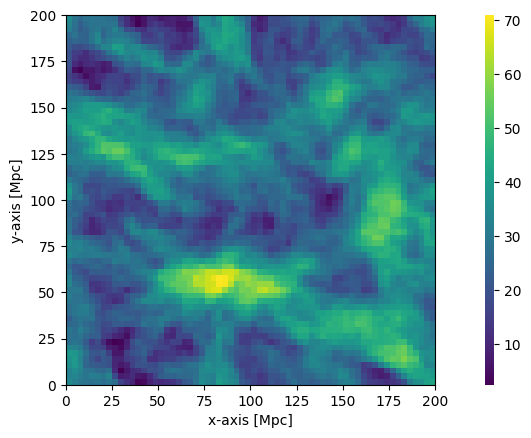

plotting.coeval_sliceplot(initial_conditions, "lowres_vcb")

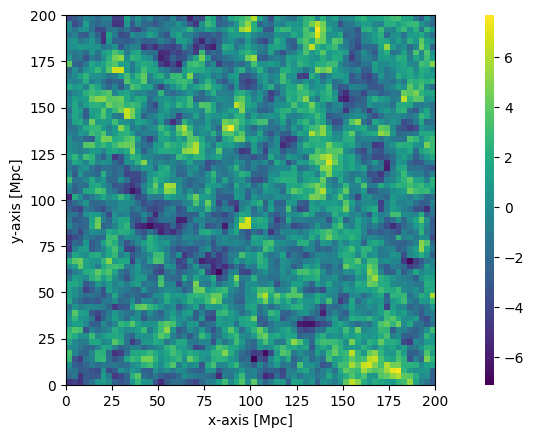

plotting.coeval_sliceplot(initial_conditions, "lowres_density");
Let’s run a ‘fiducial’ model and see its lightcones
Note that the reference model has F_STAR7_MINI ~ F_STAR10and F_ESC7_MINI ~ 1%, as low, but conservative fiducial. Also we take L_X_MINI=L_X out of simplicity (and ignorance).
[5]:
# the lightcones we want to plot later together with their color maps and min/max
lightcone_quantities = (
"brightness_temp",
"spin_temperature",
"neutral_fraction",
"cumulative_recombinations",
"z_reion",
"ionisation_rate_G12",
"J_21_LW",
"density",
)
cmaps = [
EoR_colour,
"Reds",
"magma",
"magma",
"magma",
"cubehelix",
"cubehelix",
"viridis",
]
vmins = [-150, 1e1, 0, 0, 5, 0, 0, -1]
vmaxs = [30, 1e3, 1, 2, 9, 1, 10, 1]
inputs_no_vcb = inputs.evolve_input_structs(A_VCB=0)
# the flag FIX_VCB_AVG side-steps the relative-velocity ICs, and instead fixes all velocities to some average value.
# It gets the background right but it's missing VAOs and 21cm power at large scales
inputs_vavg = inputs.evolve_input_structs(FIX_VCB_AVG=True)
[ ]:
lcn = p21c.RectilinearLightconer.with_equal_cdist_slices(
min_redshift=min(inputs.node_redshifts),
max_redshift=max(inputs.node_redshifts),
quantities=lightcone_quantities,
resolution=inputs.simulation_options.cell_size,
)
_, _, _, lightcone_fid_vcb = p21c.run_lightcone(
lightconer=lcn,
initial_conditions=initial_conditions,
global_quantities=lightcone_quantities,
cache=p21c.OutputCache(output_dir),
write=True,
)
---------------------------------------------------------------------------
KeyboardInterrupt Traceback (most recent call last)
Cell In[6], line 8
1 lcn = p21c.RectilinearLightconer.with_equal_cdist_slices(
2 min_redshift=5.0,
3 max_redshift=35.0,
4 quantities=lightcone_quantities,
5 resolution=inputs.simulation_options.cell_size,
6 )
----> 8 _, _, _, lightcone_fid_vcb = p21c.run_lightcone(
9 lightconer=lcn,
10 initial_conditions=initial_conditions,
11 global_quantities=lightcone_quantities,
12 cache=p21c.OutputCache(output_dir),
13 write=True,
14 )
File ~/miniconda3/envs/21cmfast/lib/python3.13/site-packages/py21cmfast/drivers/lightcone.py:631, in run_lightcone(**kwargs)
630 def run_lightcone(**kwargs): # noqa: D103
--> 631 return exhaust(generate_lightcone(**kwargs))
File ~/miniconda3/envs/21cmfast/lib/python3.13/site-packages/py21cmfast/drivers/__init__.py:23, in exhaust(generator)
21 def exhaust(generator: Generator):
22 """Exhaust a generator without keeping more than one return value in memory."""
---> 23 return deque(generator, maxlen=1)[0]
File ~/miniconda3/envs/21cmfast/lib/python3.13/site-packages/py21cmfast/drivers/_param_config.py:492, in high_level_func.__call__(self, **kwargs)
488 kwargs["inputs"] = inputs
490 self.check_consistency(kwargs, outputs)
--> 492 yield from self._func(**kwargs)
File ~/miniconda3/envs/21cmfast/lib/python3.13/site-packages/py21cmfast/drivers/lightcone.py:613, in generate_lightcone(lightconer, inputs, global_quantities, initial_conditions, cleanup, write, cache, regenerate, always_purge, lightcone_filename)
597 iokw = {"cache": cache, "regenerate": regenerate}
599 (
600 initial_conditions,
601 perturbed_fields,
(...) 610 **iokw,
611 )
--> 613 yield from _run_lightcone_from_perturbed_fields(
614 initial_conditions=initial_conditions,
615 perturbed_fields=perturbed_fields,
616 lightconer=lightconer,
617 inputs=inputs,
618 regenerate=regenerate,
619 pt_halos=pt_halos,
620 photon_nonconservation_data=photon_nonconservation_data,
621 global_quantities=global_quantities,
622 cache=cache,
623 write=write,
624 cleanup=cleanup,
625 always_purge=always_purge,
626 lightcone_filename=lightcone_filename,
627 )
File ~/miniconda3/envs/21cmfast/lib/python3.13/site-packages/py21cmfast/drivers/lightcone.py:449, in _run_lightcone_from_perturbed_fields(initial_conditions, perturbed_fields, lightconer, inputs, photon_nonconservation_data, pt_halos, regenerate, global_quantities, cache, cleanup, write, always_purge, lightcone_filename)
446 if lightcone_filename and not Path(lightcone_filename).exists():
447 lightcone.save(lightcone_filename)
--> 449 for iz, coeval in enumerate(
450 _redshift_loop_generator(
451 inputs=inputs,
452 initial_conditions=initial_conditions,
453 all_redshifts=scrollz,
454 perturbed_field=perturbed_fields,
455 pt_halos=pt_halos,
456 write=write,
457 cleanup=cleanup,
458 always_purge=always_purge,
459 photon_nonconservation_data=photon_nonconservation_data,
460 start_idx=lightcone._last_completed_node + 1,
461 init_coeval=prev_coeval,
462 iokw=iokw,
463 )
464 ):
465 # Save mean/global quantities
466 for quantity in global_quantities:
467 if quantity == "log10_mturn_acg":
File ~/miniconda3/envs/21cmfast/lib/python3.13/site-packages/py21cmfast/drivers/coeval.py:587, in _redshift_loop_generator(inputs, initial_conditions, all_redshifts, perturbed_field, pt_halos, write, iokw, cleanup, always_purge, photon_nonconservation_data, start_idx, init_coeval)
576 xrs = None
578 this_spin_temp = sf.compute_spin_temperature(
579 previous_spin_temp=getattr(prev_coeval, "ts_box", None),
580 perturbed_field=this_perturbed_field,
(...) 584 cleanup=(cleanup and z == all_redshifts[-1]),
585 )
--> 587 this_ionized_box = sf.compute_ionization_field(
588 previous_ionized_box=getattr(prev_coeval, "ionized_box", None),
589 perturbed_field=this_perturbed_field,
590 # perturb field *not* interpolated here.
591 previous_perturbed_field=getattr(prev_coeval, "perturbed_field", None),
592 halobox=this_halobox,
593 spin_temp=this_spin_temp,
594 write=write.ionized_box,
595 **kw,
596 )
598 if prev_coeval is not None:
599 with contextlib.suppress(OSError):
File ~/miniconda3/envs/21cmfast/lib/python3.13/site-packages/py21cmfast/drivers/_param_config.py:465, in single_field_func.__call__(self, **kwargs)
463 self._broadcast_inputs(inputs)
464 self._make_wisdoms(inputs)
--> 465 out = self._func(**kwargs)
466 self._handle_write_to_cache(cache, write, out)
468 return out
File ~/miniconda3/envs/21cmfast/lib/python3.13/site-packages/py21cmfast/drivers/single_field.py:671, in compute_ionization_field(perturbed_field, initial_conditions, inputs, previous_perturbed_field, previous_ionized_box, spin_temp, halobox)
668 raise ValueError("No spin temperature box given but USE_TS_FLUCT=True")
670 # Run the C Code
--> 671 return box.compute(
672 perturbed_field=perturbed_field,
673 prev_perturbed_field=previous_perturbed_field,
674 prev_ionize_box=previous_ionized_box,
675 spin_temp=spin_temp,
676 halobox=halobox,
677 ics=initial_conditions,
678 )
File ~/miniconda3/envs/21cmfast/lib/python3.13/site-packages/py21cmfast/wrapper/outputs.py:1335, in IonizedBox.compute(self, perturbed_field, prev_perturbed_field, prev_ionize_box, spin_temp, halobox, ics, allow_already_computed)
1323 def compute(
1324 self,
1325 *,
(...) 1332 allow_already_computed: bool = False,
1333 ):
1334 """Compute the function."""
-> 1335 return self._compute(
1336 allow_already_computed,
1337 self.redshift,
1338 prev_perturbed_field.redshift,
1339 perturbed_field,
1340 prev_perturbed_field,
1341 prev_ionize_box,
1342 spin_temp,
1343 halobox,
1344 ics,
1345 )
File ~/miniconda3/envs/21cmfast/lib/python3.13/site-packages/py21cmfast/wrapper/outputs.py:471, in OutputStruct._compute(self, allow_already_computed, *args)
469 # Perform the C computation
470 try:
--> 471 exitcode = self._c_compute_function(*inputs, self.cstruct)
472 except TypeError as e:
473 logger.error(f"Arguments to {self._c_compute_function.__name__}: {inputs}")
KeyboardInterrupt:
[ ]:
fig, axs = plt.subplots(
len(lightcone_quantities), 1, figsize=(20, 10)
)
for ii, lightcone_quantity in enumerate(lightcone_quantities):
axs[ii].imshow(
lightcone_fid_vcb.lightcones[lightcone_quantity][1],
vmin=vmins[ii],
vmax=vmaxs[ii],
cmap=cmaps[ii],
)
axs[ii].text(
1,
0.05,
lightcone_quantity,
horizontalalignment="right",
verticalalignment="bottom",
transform=axs[ii].transAxes,
color="red",
backgroundcolor="white",
fontsize=15,
)
axs[ii].xaxis.set_tick_params(labelsize=10)
axs[ii].yaxis.set_tick_params(labelsize=0)
plt.tight_layout()
fig.subplots_adjust(hspace=0.01)
[ ]:
# also run one without velocities and with fixed vcb=vavg (for comparison)
lightcone_fid_novcb = p21c.run_lightcone(
lightconer=lcn,
inputs=inputs_no_vcb,
initial_conditions=initial_conditions,
global_quantities=lightcone_quantities,
cache=p21c.OutputCache(output_dir),
write=True,
)
lightcone_fid_vcbavg = p21c.run_lightcone(
lightconer=lcn,
inputs=inputs_vavg,
initial_conditions=initial_conditions,
global_quantities=lightcone_quantities,
cache=p21c.OutputCache(output_dir),
write=True,
)
[ ]:
# plus run one with only atomic-cooling galaxies but same otherwise
inputs_acg = inputs.evolve_input_structs(USE_MINI_HALOS=False)
lightcone_fid_acg = p21c.run_lightcone(
lightconer=lcn,
inputs=inputs_acg,
initial_conditions=initial_conditions,
global_quantities=lightcone_quantities,
cache=p21c.OutputCache(output_dir),
write=True,
)
[ ]:
# compare vcb and novcb
fig, axs = plt.subplots(2, 1, figsize=(20, 6))
axs[0].imshow(
lightcone_fid_vcb.brightness_temp[1], vmin=vmins[0], vmax=vmaxs[0], cmap=cmaps[0]
)
axs[1].imshow(
lightcone_fid_novcb.brightness_temp[1], vmin=vmins[0], vmax=vmaxs[0], cmap=cmaps[0]
)
axs[0].text(
1,
0.05,
"vcb",
horizontalalignment="right",
verticalalignment="bottom",
transform=axs[0].transAxes,
color="red",
backgroundcolor="white",
fontsize=15,
)
axs[1].text(
1,
0.05,
"novcb",
horizontalalignment="right",
verticalalignment="bottom",
transform=axs[1].transAxes,
color="red",
backgroundcolor="white",
fontsize=15,
)
# axs[0].xaxis.set_tick_params(labelsize=10)
# axs[1].yaxis.set_tick_params(labelsize=0)
plt.tight_layout()
fig.subplots_adjust(hspace=0.01)
[ ]:
# plot tau
tau_vcb = tau_novcb = tau_NOMINI = np.array([])
for il, lightcone in enumerate(
[lightcone_fid_vcb, lightcone_fid_novcb, lightcone_fid_acg]
):
z_e = np.array([])
tau_e = np.array([])
for i in range(len(lightcone.node_redshifts) - 1):
tauz = p21c.compute_tau(
redshifts=lightcone.node_redshifts[-1 : -2 - i : -1],
global_xHI=lightcone.global_xHI[-1 : -2 - i : -1],
)
tau_e = np.append(tau_e, tauz)
z_e = np.append(z_e, lightcone.node_redshifts[-2 - i])
# add lower zs where we manually set xH=1
zlow = np.linspace(lightcone.node_redshifts[-1] - 0.1, 0.1, 14)
for zl in zlow:
tauz = p21c.compute_tau(
redshifts=np.array([zl]), global_xHI=np.array([lightcone.global_xHI[-1]])
)
tau_e = np.append([tauz], tau_e)
z_e = np.append([zl], z_e)
if il == 0:
tau_vcb = tau_e
elif il == 1:
tau_novcb = tau_e
else:
tau_NOMINI = tau_e
linestyles = ["-", "-.", ":"]
colors = ["black", "gray", "#377eb8"]
lws = [3, 1, 2]
fig, axs = plt.subplots(1, 1, sharex=True, figsize=(8, 4))
kk = 0
axs.plot(
z_e, tau_vcb, label="vcb", color=colors[kk], linestyle=linestyles[kk], lw=lws[kk]
)
kk = 1
axs.plot(
z_e,
tau_novcb,
label="no vcb",
color=colors[kk],
linestyle=linestyles[kk],
lw=lws[kk],
)
kk = 2
axs.plot(
z_e,
tau_NOMINI,
label="no MINI",
color=colors[kk],
linestyle=linestyles[kk],
lw=lws[kk],
)
axs.set_ylim(0.0, 0.1)
axs.set_xlabel("redshift", fontsize=15)
axs.xaxis.set_tick_params(labelsize=15)
axs.set_xlim(0.0, 20.0)
axs.set_ylabel("$\\tau$", fontsize=15)
axs.yaxis.set_tick_params(labelsize=15)
plt.tight_layout()
fig.subplots_adjust(hspace=0.0, wspace=0.0)
tauPmin = 0.0561 - 0.0071
tauPmax = 0.0561 + 0.0071
axs.axhspan(tauPmin, tauPmax, alpha=0.34, color="black")
axs.grid()
# Planck2020: tau=0.0561±0.0071
[ ]:
# check that the tau z=15-30 is below 0.02 as Planck requires
tau_vcb[-1] - tau_vcb[55]
[ ]:
linestyles = ["-", "-.", ":"]
colors = ["black", "gray", "#377eb8"]
lws = [3, 1, 2]
labels = ["vcb", "no vcb", "no MINI"]
fig, axs = plt.subplots(1, 1, sharex=True, figsize=(8, 4))
for kk, lightcone in enumerate(
[lightcone_fid_vcb, lightcone_fid_novcb, lightcone_fid_acg]
):
axs.plot(
lightcone.node_redshifts,
lightcone.global_xHI,
label=labels[kk],
color=colors[kk],
linestyle=linestyles[kk],
lw=lws[kk],
)
axs.set_ylim(0.0, 1.0)
axs.set_xlabel("redshift", fontsize=15)
axs.xaxis.set_tick_params(labelsize=15)
axs.set_xlim(5.0, 20.0)
axs.set_ylabel("$x_{HI}$", fontsize=15)
axs.yaxis.set_tick_params(labelsize=15)
plt.tight_layout()
fig.subplots_adjust(hspace=0.0, wspace=0.0)
axs.grid()
[ ]:
runcache = p21c.RunCache.from_inputs(inputs)
[ ]:
# choose a redshift to print coeval slices and see if there are VAOs. Usually best then T21~T21min/2
zz = zlist21[40]
[ ]:
# We plot a coeval box, but we compare the vcb case against the vcb=vavg, since the no velocity (vcb=0) case has a background evolution that is too different.
coeval_fid_vcb = runcache.get_coeval_at_z(inputs.node_redshifts)
p21c.run_coeval(
redshift=zz,
init_box=initial_conditions,
flag_options=flag_options_fid,
astro_params=astro_params_vcb,
random_seed=random_seed,
direc=output_dir,
write=True, # , regenerate=True
)
coeval_fid_vcbavg = p21c.run_coeval(
redshift=zz,
init_box=initial_conditions,
flag_options=flag_options_fid_vavg,
astro_params=astro_params_vcb,
random_seed=random_seed,
direc=output_dir,
write=True, # , regenerate=True
)
[ ]:
[ ]:
T21slice_vcb = coeval_fid_vcb.brightness_temp
T21avg_vcb = np.mean(T21slice_vcb)
dT21slice_vcb = T21slice_vcb - T21avg_vcb
T21slice_novcb = coeval_fid_vcbavg.brightness_temp
T21avg_novcb = np.mean(T21slice_novcb)
dT21slice_novcb = T21slice_novcb - T21avg_novcb
sigma21 = np.sqrt(np.var(dT21slice_vcb))
T21maxplot = 3.0 * sigma21
T21minplot = -2.0 * sigma21
origin = "lower"
extend = "both"
origin = None
extend = "neither"
xx = np.linspace(0, BOX_LEN, HII_DIM, endpoint=False)
yy = xx
indexv = 0
fig, ax = plt.subplots(
2,
2,
constrained_layout=True,
figsize=(10, 8),
sharex="col",
sharey="row",
gridspec_kw={"hspace": 0, "wspace": 0},
)
cs0 = ax[0, 0].contourf(
xx,
yy,
dT21slice_novcb[indexv],
extend=extend,
origin=origin,
vmin=T21minplot,
vmax=T21maxplot,
cmap="bwr",
)
fig.colorbar(cs0, ax=ax[0, 0], shrink=0.9, location="left")
cs1 = ax[0, 1].contourf(
xx,
yy,
dT21slice_vcb[indexv],
extend=extend,
origin=origin,
vmin=T21minplot,
vmax=T21maxplot,
cmap="bwr",
)
fig.colorbar(cs1, ax=ax[0, 1], shrink=0.9)
deltaslice = initial_conditions.lowres_density
deltaavg = np.mean(deltaslice)
ddeltaslice = deltaslice - deltaavg
vcbslice = initial_conditions.lowres_vcb
vcbavg = np.mean(vcbslice)
dvcbslice = vcbslice
csd = ax[1, 0].contourf(xx, yy, ddeltaslice[indexv])
fig.colorbar(csd, ax=ax[1, 0], shrink=0.9, location="left")
csv = ax[1, 1].contourf(xx, yy, dvcbslice[indexv])
fig.colorbar(csv, ax=ax[1, 1], shrink=0.9, extend=extend)
plt.show()
plt.tight_layout()
[ ]:
global_quantities = (
"brightness_temp",
"spin_temperature",
"neutral_fraction",
"cumulative_recombinations",
"z_reion",
"ionisation_rate_G12",
"J_21_LW",
"density",
)
# choose some to plot...
plot_quantities = (
"brightness_temp",
"spin_temperature",
"neutral_fraction",
"cumulative_recombinations",
"ionisation_rate_G12",
"J_21_LW",
)
ymins = [-120, 1e1, 0, 0, 0, 0]
ymaxs = [30, 1e3, 1, 1, 1, 5]
linestyles = ["-", "-", ":", "-.", "-.", ":"]
colors = ["gray", "black", "#e41a1c", "#377eb8", "#e41a1c", "#377eb8"]
lws = [2, 2, 2, 2]
textss = ["vcb", "MCGs"]
factorss = [
[0, 1],
] * len(textss)
labelss = [
["NO", "reference"],
] * len(textss)
fig, axss = plt.subplots(
len(plot_quantities),
len(labelss),
sharex=True,
figsize=(4 * len(labelss), 2 * len(plot_quantities)),
)
for pp, texts in enumerate(textss):
labels = labelss[pp]
factors = factorss[pp]
axs = axss[:, pp]
for kk, label in enumerate(labels):
factor = factors[kk]
if kk == 0:
lightcone = lightcone_fid_acg if pp == 0 else lightcone_fid_novcb
else:
lightcone = lightcone_fid_vcb
freqs = 1420.4 / (np.array(lightcone.node_redshifts) + 1.0)
for jj, global_quantity in enumerate(plot_quantities):
axs[jj].plot(
freqs,
getattr(
lightcone, "global_{}".format(global_quantity.replace("_box", ""))
),
color=colors[kk],
linestyle=linestyles[kk],
label=labels[kk],
lw=lws[kk],
)
axs[0].text(
0.01,
0.99,
texts,
horizontalalignment="right",
verticalalignment="bottom",
transform=axs[0].transAxes,
fontsize=15,
)
for jj, global_quantity in enumerate(plot_quantities):
axs[jj].set_ylim(ymins[jj], ymaxs[jj])
axs[-1].set_xlabel("Frequency/MHz", fontsize=15)
axs[-1].xaxis.set_tick_params(labelsize=15)
axs[0].set_xlim(1420.4 / (35 + 1.0), 1420.4 / (5.5 + 1.0))
zlabels = np.array([6, 7, 8, 10, 13, 18, 25, 35])
ax2 = axs[0].twiny()
ax2.set_xlim(axs[0].get_xlim())
ax2.set_xticks(1420.4 / (zlabels + 1.0))
ax2.set_xticklabels(zlabels.astype(str))
ax2.set_xlabel("redshift", fontsize=15)
ax2.xaxis.set_tick_params(labelsize=15)
ax2.grid(False)
if pp == 0:
axs[0].legend(
loc="lower right", ncol=2, fontsize=13, fancybox=True, frameon=True
)
for jj, global_quantity in enumerate(plot_quantities):
axs[jj].set_ylabel(
"global_{}".format(global_quantity.replace("_box", "")), fontsize=15
)
axs[jj].yaxis.set_tick_params(labelsize=15)
else:
for jj, global_quantity in enumerate(plot_quantities):
axs[jj].set_ylabel(
"global_{}".format(global_quantity.replace("_box", "")), fontsize=0
)
axs[jj].yaxis.set_tick_params(labelsize=0)
plt.tight_layout()
fig.subplots_adjust(hspace=0.0, wspace=0.0)
Varying parameters¶
let’s vary the parameters that describe mini-halos and see the impact to the global signal. Warning: It may take a while to run all these boxes!
We keep other parameters fixed and vary one of following by a factor of 1/3 and 3:
F_STAR7_MINI
F_ESC7_MINI
L_X_MINI
A_LW
We also have a NOmini model where mini-halos are not included
[ ]:
# defining those color, linstyle, blabla
linestyles = ["-", "-", ":", "-.", "-.", ":"]
colors = ["gray", "black", "#e41a1c", "#377eb8", "#e41a1c", "#377eb8"]
lws = [1, 3, 2, 2, 2, 2]
textss = [
"varying " + r"$f_{*,7}^{\rm mol}$",
"varying " + r"$f_{\rm esc}^{\rm mol}$",
"varying " + r"$L_{\rm x}^{\rm mol}$",
"varying " + r"$A_{\rm LW}$",
]
factorss = [
[0, 1, 0.33, 3.0],
] * len(textss)
labelss = [
["No Velocity", "Fiducial", "/3", "x3"],
] * len(textss)
[ ]:
global_quantities = (
"brightness_temp",
"spin_temperature",
"neutral_fraction",
"cumulative_recombinations",
"z_reion",
"ionisation_rate_G12",
"J_21_LW",
"density",
)
# choose some to plot...
plot_quantities = (
"brightness_temp",
"spin_temperature",
"neutral_fraction",
"cumulative_recombinations",
"ionisation_rate_G12",
"J_21_LW",
)
ymins = [-120, 1e1, 0, 0, 0, 0]
ymaxs = [30, 1e3, 1, 1, 1, 10]
fig, axss = plt.subplots(
len(plot_quantities),
len(labelss),
sharex=True,
figsize=(4 * len(labelss), 2 * len(global_quantities)),
)
for pp, texts in enumerate(textss):
labels = labelss[pp]
factors = factorss[pp]
axs = axss[:, pp]
for kk, label in enumerate(labels):
flag_options = flag_options_fid.copy()
astro_params = astro_params_vcb.copy()
factor = factors[kk]
if label == "No Velocity":
lightcone = lightcone_fid_novcb
elif label == "Fiducial":
lightcone = lightcone_fid_vcb
else:
if pp == 0:
astro_params.update(
{
"F_STAR7_MINI": astro_params_vcb["F_STAR7_MINI"]
+ np.log10(factor)
}
)
elif pp == 1:
astro_params.update(
{"F_ESC7_MINI": astro_params_vcb["F_ESC7_MINI"] + np.log10(factor)}
)
elif pp == 2:
astro_params.update(
{"L_X_MINI": astro_params_vcb["L_X_MINI"] + np.log10(factor)}
)
elif pp == 3:
astro_params.update({"A_LW": astro_params_vcb["A_LW"] * factor})
else:
pass
lightcone = p21c.run_lightcone(
redshift=ZMIN,
init_box=initial_conditions,
flag_options=flag_options_fid,
astro_params=astro_params,
global_quantities=global_quantities,
random_seed=random_seed,
direc=output_dir,
)
freqs = 1420.4 / (np.array(lightcone.node_redshifts) + 1.0)
for jj, global_quantity in enumerate(plot_quantities):
axs[jj].plot(
freqs,
getattr(
lightcone, "global_{}".format(global_quantity.replace("_box", ""))
),
color=colors[kk],
linestyle=linestyles[kk],
label=labels[kk],
lw=lws[kk],
)
axs[0].text(
0.01,
0.99,
texts,
horizontalalignment="left",
verticalalignment="top",
transform=axs[0].transAxes,
fontsize=15,
)
for jj, global_quantity in enumerate(plot_quantities):
axs[jj].set_ylim(ymins[jj], ymaxs[jj])
axs[-1].set_xlabel("Frequency/MHz", fontsize=15)
axs[-1].xaxis.set_tick_params(labelsize=15)
axs[0].set_xlim(1420.4 / (35 + 1.0), 1420.4 / (5.5 + 1.0))
zlabels = np.array([6, 7, 8, 10, 13, 18, 25, 35])
ax2 = axs[0].twiny()
ax2.set_xlim(axs[0].get_xlim())
ax2.set_xticks(1420.4 / (zlabels + 1.0))
ax2.set_xticklabels(zlabels.astype(str))
ax2.set_xlabel("redshift", fontsize=15)
ax2.xaxis.set_tick_params(labelsize=15)
ax2.grid(False)
if pp == 0:
axs[0].legend(
loc="lower right", ncol=2, fontsize=13, fancybox=True, frameon=True
)
for jj, global_quantity in enumerate(plot_quantities):
axs[jj].set_ylabel(
"global_{}".format(global_quantity.replace("_box", "")), fontsize=15
)
axs[jj].yaxis.set_tick_params(labelsize=15)
else:
for jj, global_quantity in enumerate(plot_quantities):
axs[jj].set_ylabel(
"global_{}".format(global_quantity.replace("_box", "")), fontsize=0
)
axs[jj].yaxis.set_tick_params(labelsize=0)
plt.tight_layout()
fig.subplots_adjust(hspace=0.0, wspace=0.0)
[ ]:
[ ]:
# define functions to calculate PS, following py21cmmc
from powerbox.tools import get_power
def compute_power(
box,
length,
n_psbins,
log_bins=True,
ignore_kperp_zero=True,
ignore_kpar_zero=False,
ignore_k_zero=False,
):
# Determine the weighting function required from ignoring k's.
k_weights = np.ones(box.shape, dtype=int)
n0 = k_weights.shape[0]
n1 = k_weights.shape[-1]
if ignore_kperp_zero:
k_weights[n0 // 2, n0 // 2, :] = 0
if ignore_kpar_zero:
k_weights[:, :, n1 // 2] = 0
if ignore_k_zero:
k_weights[n0 // 2, n0 // 2, n1 // 2] = 0
res = get_power(
box,
boxlength=length,
bins=n_psbins,
bin_ave=False,
get_variance=False,
log_bins=log_bins,
k_weights=k_weights,
)
res = list(res)
k = res[1]
if log_bins:
k = np.exp((np.log(k[1:]) + np.log(k[:-1])) / 2)
else:
k = (k[1:] + k[:-1]) / 2
res[1] = k
return res
def powerspectra(
brightness_temp, n_psbins=50, nchunks=10, min_k=0.1, max_k=1.0, logk=True
):
data = []
chunk_indices = list(
range(
0,
brightness_temp.n_slices,
round(brightness_temp.n_slices / nchunks),
)
)
if len(chunk_indices) > nchunks:
chunk_indices = chunk_indices[:-1]
chunk_indices.append(brightness_temp.n_slices)
for i in range(nchunks):
start = chunk_indices[i]
end = chunk_indices[i + 1]
chunklen = (end - start) * brightness_temp.cell_size
power, k = compute_power(
brightness_temp.brightness_temp[:, :, start:end],
(BOX_LEN, BOX_LEN, chunklen),
n_psbins,
log_bins=logk,
)
data.append({"k": k, "delta": power * k**3 / (2 * np.pi**2)})
return data
[ ]:
# do 5 chunks but only plot 1 - 4, the 0th has no power for minihalo models where xH=0
nchunks = 4
k_fundamental = 2 * np.pi / BOX_LEN
k_max = k_fundamental * HII_DIM
Nk = np.floor(HII_DIM / 1).astype(int)
fig, axss = plt.subplots(
nchunks,
len(labelss),
sharex=True,
sharey=True,
figsize=(4 * len(labelss), 3 * (nchunks)),
subplot_kw={"xscale": "log", "yscale": "log"},
)
for pp, texts in enumerate(textss):
labels = labelss[pp]
factors = factorss[pp]
axs = axss[:, pp]
for kk, label in enumerate(labels):
flag_options = flag_options_fid.copy()
astro_params = astro_params_vcb.copy()
factor = factors[kk]
if label == "No Velocity":
lightcone = lightcone_fid_novcb
elif label == "Fiducial":
lightcone = lightcone_fid_vcb
else:
if pp == 0:
astro_params.update(
{
"F_STAR7_MINI": astro_params_vcb["F_STAR7_MINI"]
+ np.log10(factor)
}
)
elif pp == 1:
astro_params.update(
{"F_ESC7_MINI": astro_params_vcb["F_ESC7_MINI"] + np.log10(factor)}
)
elif pp == 2:
astro_params.update(
{"L_X_MINI": astro_params_vcb["L_X_MINI"] + np.log10(factor)}
)
elif pp == 3:
astro_params.update(
{"A_LW": astro_params_vcb["A_LW"] + np.log10(factor)}
)
else:
pass
lightcone = p21c.run_lightcone(
redshift=ZMIN,
init_box=initial_conditions,
flag_options=flag_options_fid,
astro_params=astro_params,
global_quantities=global_quantities,
random_seed=random_seed,
direc=output_dir,
)
PS = powerspectra(lightcone, min_k=k_fundamental, max_k=k_max)
for ii in range(nchunks):
axs[ii].plot(
PS[ii + 1]["k"],
PS[ii + 1]["delta"],
color=colors[kk],
linestyle=linestyles[kk],
label=labels[kk],
lw=lws[kk],
)
if pp == len(textss) - 1 and kk == 0:
axs[ii].text(
0.99,
0.01,
"Chunk-%02d" % (ii + 1),
horizontalalignment="right",
verticalalignment="bottom",
transform=axs[ii].transAxes,
fontsize=15,
)
axs[0].text(
0.01,
0.99,
texts,
horizontalalignment="left",
verticalalignment="top",
transform=axs[0].transAxes,
fontsize=15,
)
axs[-1].set_xlabel("$k$ [Mpc$^{-3}$]", fontsize=15)
axs[-1].xaxis.set_tick_params(labelsize=15)
if pp == 0:
for ii in range(nchunks):
axs[ii].set_ylim(2e-1, 2e2)
axs[ii].set_ylabel("$k^3 P$", fontsize=15)
axs[ii].yaxis.set_tick_params(labelsize=15)
else:
for ii in range(nchunks - 1):
axs[ii].set_ylim(2e-1, 2e2)
axs[ii].set_ylabel("$k^3 P$", fontsize=0)
axs[ii].yaxis.set_tick_params(labelsize=0)
axss[0, 0].legend(loc="lower left", ncol=2, fontsize=13, fancybox=True, frameon=True)
plt.tight_layout()
fig.subplots_adjust(hspace=0.0, wspace=0.0)
Note that I’ve run these simulations in parallel before this tutorial. With these setup, each took ~6h to finish. Here, running means read the cached outputs.
global properties – optical depth¶
[ ]:
# defining those color, linstyle, blabla
linestyles = ["-", "-", ":", "-.", "-.", ":"]
colors = ["gray", "black", "#e41a1c", "#377eb8", "#e41a1c", "#377eb8"]
lws = [1, 3, 2, 2, 2, 2]
textss_tau = [
"varying " + r"$f_{*,7}^{\rm mol}$",
"varying " + r"$f_{\rm esc}^{\rm mol}$",
"varying " + r"$A_{\rm LW}$",
]
factorss_tau = [
[0, 1, 0.33, 3.0],
] * len(textss_tau)
labelss_tau = [
["No Velocity", "Fiducial", "/3", "x3"],
] * len(textss_tau)
[ ]:
plot_quantities = ["tau_e"]
ymins = [0]
ymaxs = [0.2]
fig, axss_tau = plt.subplots(
len(plot_quantities),
len(labelss_tau),
sharex=True,
figsize=(4 * len(labelss_tau), 3 * len(plot_quantities)),
)
for pp, texts in enumerate(textss_tau):
labels = labelss_tau[pp]
factors = factorss_tau[pp]
axs = axss_tau[pp]
for kk, label in enumerate(labels):
flag_options = flag_options_fid.copy()
astro_params = astro_params_vcb.copy()
factor = factors[kk]
if label == "No Velocity":
lightcone = lightcone_fid_novcb
elif label == "Fiducial":
lightcone = lightcone_fid_vcb
else:
if pp == 0:
astro_params.update(
{
"F_STAR7_MINI": astro_params_vcb["F_STAR7_MINI"]
+ np.log10(factor)
}
)
elif pp == 1:
astro_params.update(
{"F_ESC7_MINI": astro_params_vcb["F_ESC7_MINI"] + np.log10(factor)}
)
elif pp == 2:
astro_params.update({"A_LW": astro_params_vcb["A_LW"] * factor})
else:
pass
lightcone = p21c.run_lightcone(
redshift=ZMIN,
init_box=initial_conditions,
flag_options=flag_options_fid,
astro_params=astro_params,
global_quantities=global_quantities,
random_seed=random_seed,
direc=output_dir,
)
z_e = np.array([])
tau_e = np.array([])
for i in range(len(lightcone.node_redshifts) - 1):
tauz = p21c.compute_tau(
redshifts=lightcone.node_redshifts[-1 : -2 - i : -1],
global_xHI=lightcone.global_xHI[-1 : -2 - i : -1],
)
tau_e = np.append(tau_e, tauz)
z_e = np.append(z_e, lightcone.node_redshifts[-2 - i])
# print(i,lightcone.node_redshifts[i],tauz)
# add lower zs where we manually set xH=1
zlow = np.linspace(lightcone.node_redshifts[-1] - 0.1, 0.1, 14)
for zl in zlow:
tauz = p21c.compute_tau(
redshifts=np.array([zl]),
global_xHI=np.array([lightcone.global_xHI[-1]]),
)
tau_e = np.append([tauz], tau_e)
z_e = np.append([zl], z_e)
# freqs = 1420.4 / (np.array(lightcone.node_redshifts) + 1.)
for jj, global_quantity in enumerate(plot_quantities):
axs.plot(
z_e,
tau_e,
color=colors[kk],
linestyle=linestyles[kk],
label=labels[kk],
lw=lws[kk],
)
axs.text(
0.01,
0.99,
texts,
horizontalalignment="left",
verticalalignment="top",
transform=axs.transAxes,
fontsize=15,
)
axs.set_ylim(ymins[0], ymaxs[0])
axs.set_xlabel("redshift", fontsize=15)
axs.xaxis.set_tick_params(labelsize=15)
axs.set_xlim(0.0, 20.0)
if pp == 0:
for ii in range(nchunks):
axs.set_ylabel("$\\tau$", fontsize=15)
axs.yaxis.set_tick_params(labelsize=15)
else:
for ii in range(nchunks - 1):
axs.yaxis.set_tick_params(labelsize=0)
plt.tight_layout()
fig.subplots_adjust(hspace=0.0, wspace=0.0)
[ ]:
[ ]:
21-cm power spectra¶
[ ]:
# do 5 chunks but only plot 1 - 4, the 0th has no power for minihalo models where xH=0
nchunks = 4
fig, axss = plt.subplots(
nchunks,
len(labelss),
sharex=True,
sharey=True,
figsize=(4 * len(labelss), 3 * (nchunks)),
subplot_kw={"xscale": "log", "yscale": "log"},
)
for pp, texts in enumerate(textss):
labels = labelss[pp]
factors = factorss[pp]
axs = axss[:, pp]
for kk, label in enumerate(labels):
factor = factors[kk]
lightcone = lightcone_fid_vcbavg if kk == 0 else lightcone_fid_vcb
PS = powerspectra(lightcone, min_k=k_fundamental, max_k=k_max)
for ii in range(nchunks):
axs[ii].plot(
PS[ii + 1]["k"],
PS[ii + 1]["delta"],
color=colors[kk],
linestyle=linestyles[kk],
label=labels[kk],
lw=lws[kk],
)
if pp == len(textss) - 1 and kk == 0:
axs[ii].text(
0.99,
0.01,
"Chunk-%02d" % (ii + 1),
horizontalalignment="right",
verticalalignment="bottom",
transform=axs[ii].transAxes,
fontsize=15,
)
axs[0].text(
0.01,
0.99,
texts,
horizontalalignment="left",
verticalalignment="top",
transform=axs[0].transAxes,
fontsize=15,
)
axs[-1].set_xlabel("$k$ [Mpc$^{-3}$]", fontsize=15)
axs[-1].xaxis.set_tick_params(labelsize=15)
if pp == 0:
for ii in range(nchunks):
axs[ii].set_ylim(2e-1, 2e2)
axs[ii].set_ylabel("$k^3 P$", fontsize=15)
axs[ii].yaxis.set_tick_params(labelsize=15)
else:
for ii in range(nchunks - 1):
axs[ii].set_ylim(2e-1, 2e2)
axs[ii].set_ylabel("$k^3 P$", fontsize=0)
axs[ii].yaxis.set_tick_params(labelsize=0)
axss[0, 0].legend(loc="lower left", ncol=2, fontsize=13, fancybox=True, frameon=True)
plt.tight_layout()
fig.subplots_adjust(hspace=0.0, wspace=0.0)
[ ]:
nchunks = 5
textss = ["vcb", "vcb"]
factorss = [
[0, 1],
] * len(textss)
labelss = [
["Regular", "Avg"],
] * len(textss)
k_fundamental = 2 * np.pi / BOX_LEN
k_max = k_fundamental * HII_DIM
Nk = np.floor(HII_DIM / 1).astype(int)
PSv = powerspectra(lightcone_fid_vcb, min_k=k_fundamental, max_k=k_max)
PSvavg = powerspectra(lightcone_fid_vcbavg, min_k=k_fundamental, max_k=k_max)
[ ]:
klist = PSv[0]["k"]
P21diff = [
(PSv[i]["delta"] - PSvavg[i]["delta"]) / PSvavg[i]["delta"] for i in range(nchunks)
]
import matplotlib.pyplot as plt
fig, axss = plt.subplots(
nchunks,
1,
sharex=True,
sharey=True,
figsize=(2 * len(labelss), 3 * (nchunks)),
subplot_kw={"xscale": "linear", "yscale": "linear"},
)
for ii in range(nchunks):
axss[ii].plot(klist, P21diff[ii])
plt.xscale("log")
axss[0].legend(loc="lower left", ncol=2, fontsize=13, fancybox=True, frameon=True)
plt.tight_layout()
fig.subplots_adjust(hspace=0.0, wspace=0.0)
[ ]:
